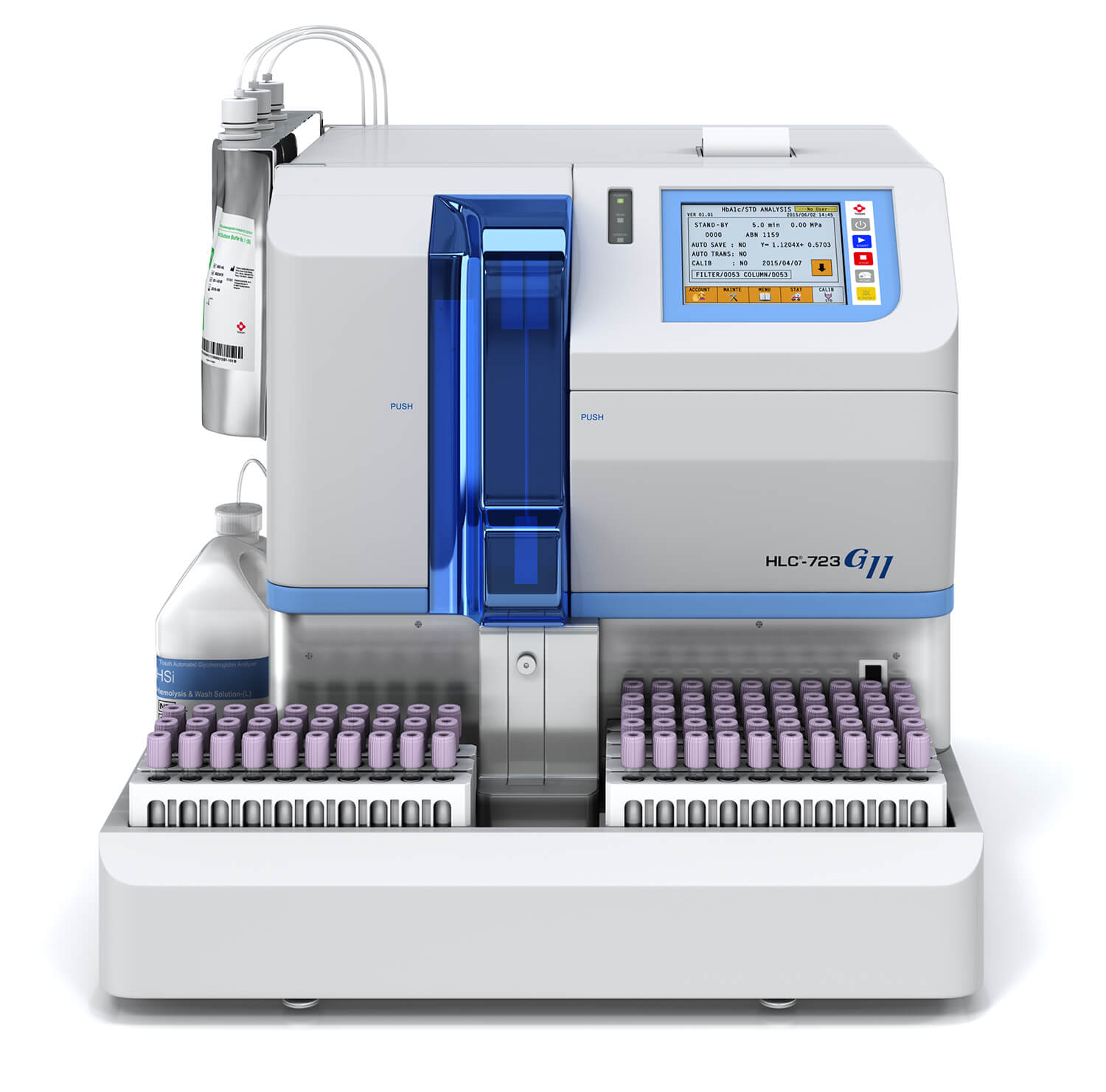

Analytes: HbA1c (s-A1c), HbF
Applicable samples: Whole blood and diluted samples
Assay principle: Ion exchange high performance liquid chromatography
Processing throughput: 2.2 min/sample
Detection method: 2-wavelength absorbance
HPLC method
ß Thalassemia (A2,F)
Assay principle CLEIA
Reagent type AIA-CL Twin cup
Available IVD reagents > 55 assays
Test principle 1 CL AIA-PACK® cup = 1 test
Time to first result Approx. 15 minutes
Processing capacity Max. 30 tests/hour
Number of analytes per sample Max. 6
Sample volume 5 - 50 μL
Samples Max 8 (on-board)
Sample pre- and post-dilution Auto (4 to 625x)
Sample pretreatment Auto
Reagent rack Sample assay: Max. 24 cups
Calibration assay: Max. 30 cups

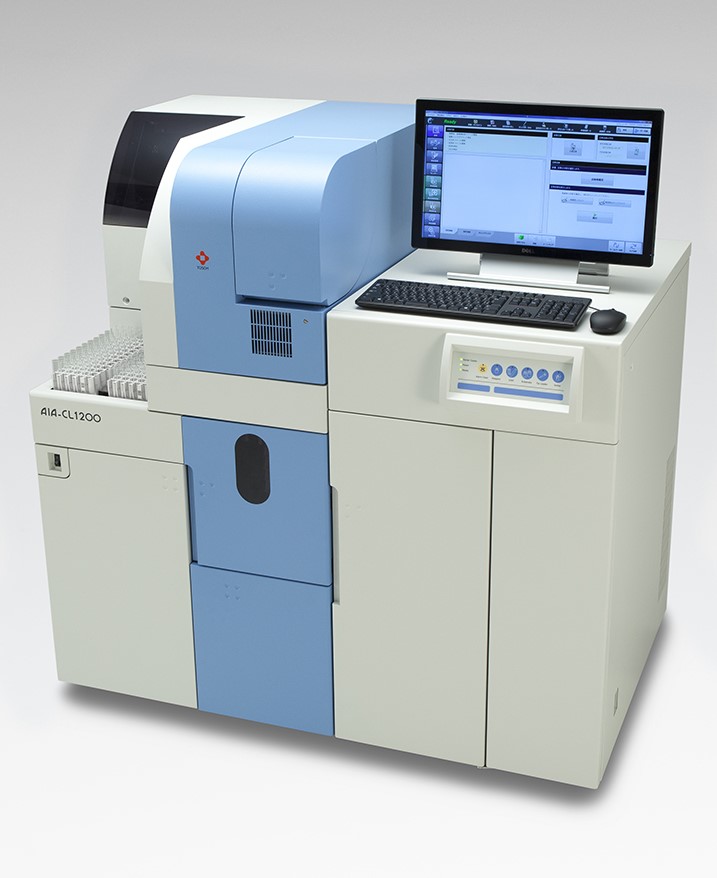

First results available within 15 minutes
Up to 120 tests per hour
Ready to use reagents
Continuous loading of samples
Random access
Non-stop reagent supply
High reagent loading capacity
Fully automated calibration, sample dilution and sample
pre-treatment
Optional: module for automated preparation of Wash and
Diluent solutions
• Loading capacity samples: 100 (20 racks of 5 samples)
• Up to 20 analytes per specimen
• Specimen containers: test tube/sample cup
• Sample volume: 5 to 50 μL
• Dilution: 4 to 625 range
• Loading capacity reagents: 20 trays = 640 tests
• Tip rack loader with 480 tips
• STAT position
• Refrigerator ≤ 15 degrees Celsius

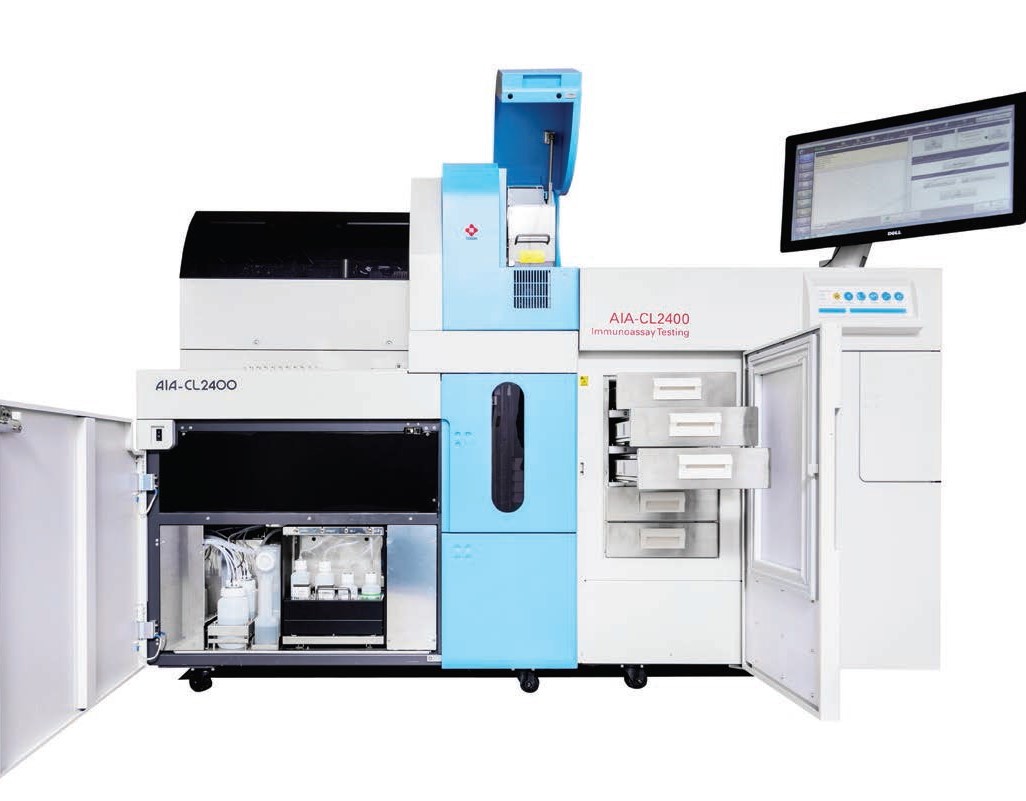

First results available within 15 minutes
Up to 240 tests per hour
Long calibration and on-board reagent stability
On board refrigeration
Loading capacity samples: 200 (20 racks)
Up to 40 analytes per specimen
Specimen containers: test tube/sample cup
Sample volume 5 to 50 μL
Dilution: 4 to 625 range
Up to 30 samples simultaneously
Internal bar-code reader
Internal mixing of samples by complete inversion of the tubes
10 inches colour touch screen
Innovative graphic interface

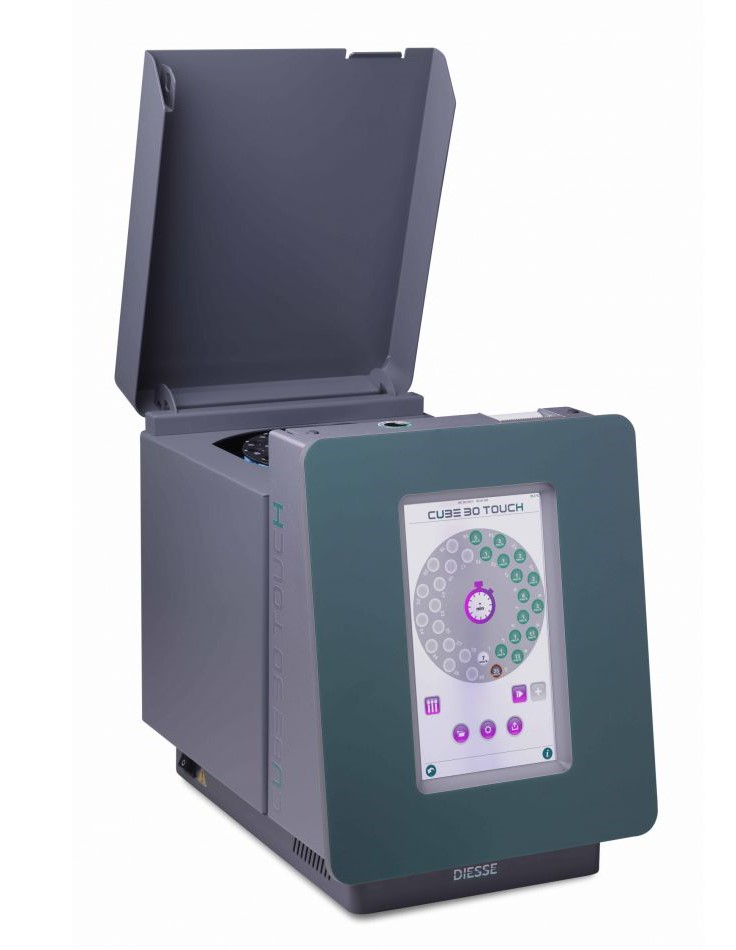

30 results in less than 25 minutes
Up to 30 different tests per run
NO hidden costs
NO waste of reagents
More than 150 specialty tests consolidated
in a single system

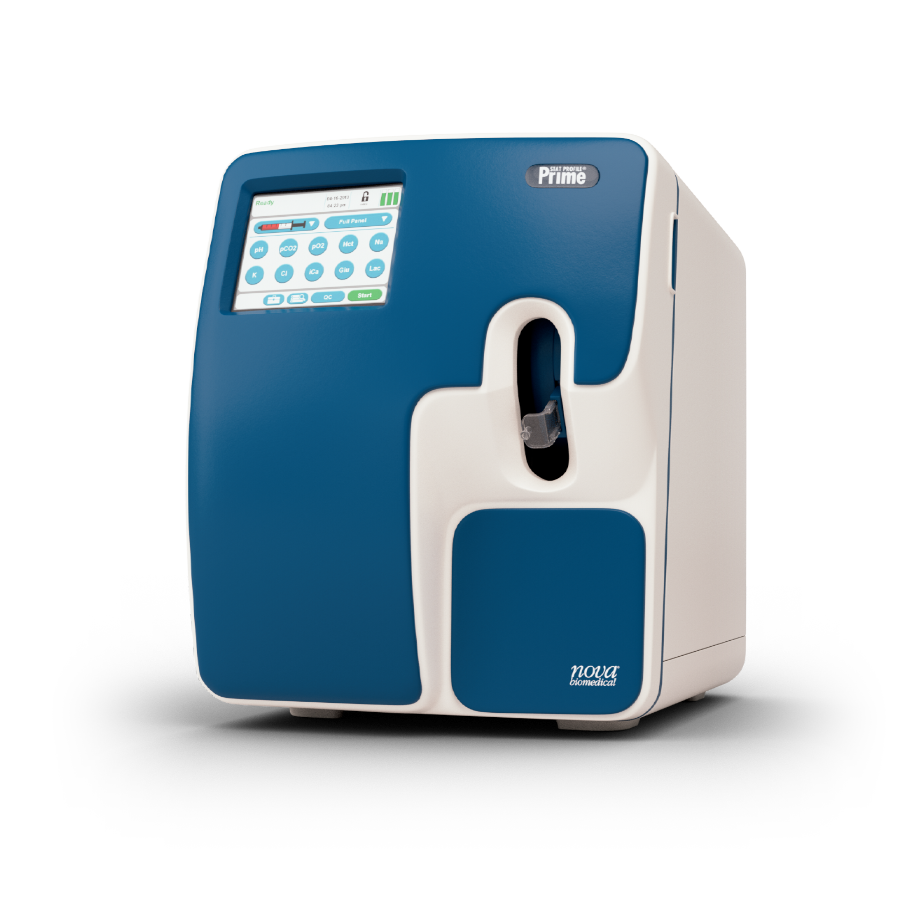

Measured parameters:
pH, pCO2, pO2, Hct, Na, K, Cl, iCa Glu,Lac
Calculated parameters:
pH, PCO2, PO2, HCO3-, TCO2, Be-efc, Be-b, SBC, O2Ct, O2Cap, A, AaDO2, a / A, RI, PO2/FIO2, Anion Gap, P50, SO2%, Hb
